Our is a manufacturer of NdFeB magnets and magnetic products with well-equipped testing equipment and strong technical force.
Sell neodymium magnets, alnico magnets, smco magnets, ferrite magnet.
Our products are widely recognized and trusted by users and can meet continuously developing economic and social needs.

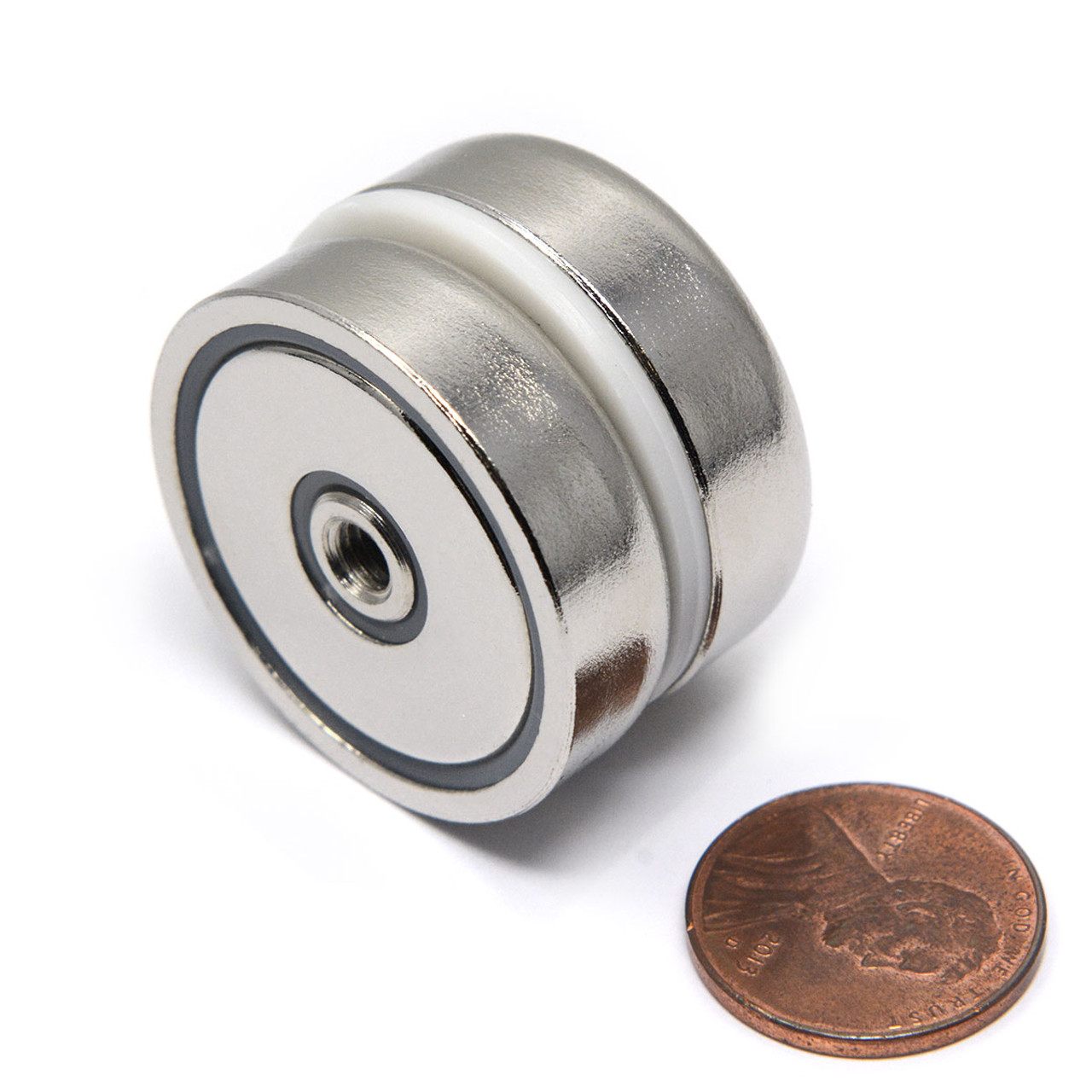

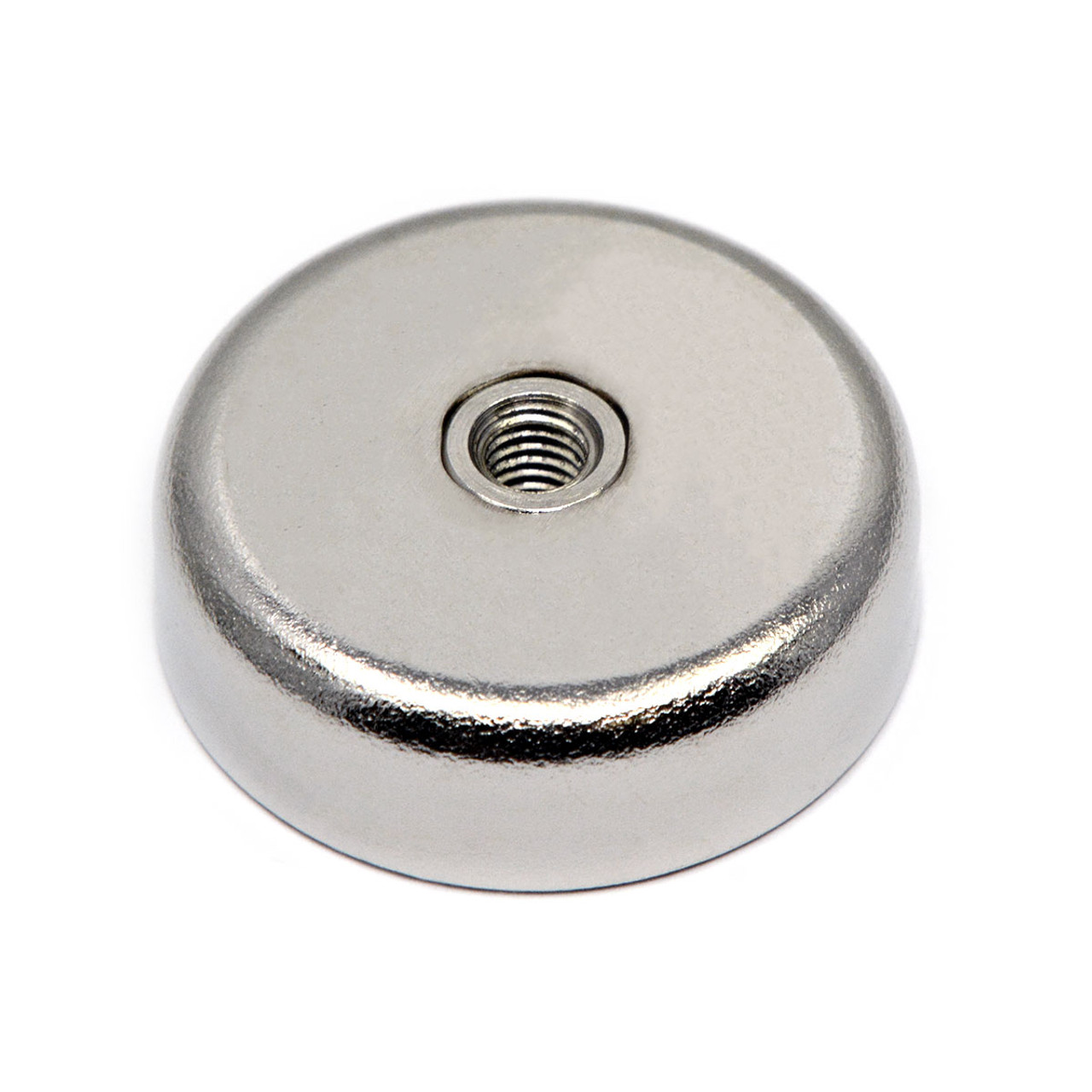

NdFeb Flat Pot Magnets with Through Hole
Free Samples N35 N38 N40 N42 N45 N48 N50 N52 Strong Neodymium MagnetOne-Stop Service ,Total Magnetic SolutionProducts DescriptionNeodymium Pot magnetMagnetic Pot with Countersink hole for screw:Magnetic Pot with Countersink hole include KTNP-A, KTNP-...
- Overview
- Related Products
Free Samples N35 N38 N40 N42 N45 N48 N50 N52 Strong Neodymium Magnet
One-Stop Service ,Total Magnetic Solution
Products Description
Neodymium Pot magnet
Magnetic Pot with Countersink hole for screw:
Magnetic Pot with Countersink hole include KTNP-A, KTNP-A-1,NA,KTNP-AL four types, we can offer almost all the sizes countersink hole magnetic pot. Which are best for small sized magnetic products with maximum pull strength(ideally when in directly with ferromagnetic e.g mild steel surface). The actual pull force achieved is dependent on the surface that is being clamped onto material type, flatness, friction levels, thickness.
Application:
There are many applications for Neodymium Pot Magnets, mainly in applications where a strong clamping force is required.
Applications include Point of Sale, window dressing, door / cupboard and gate clamps, false ceiling clamps, signs and banners, torque limited seals, jigs and fixtures, lighting holders, marketing and exhibition displays, retrieval magnets, industrial fixings, etc.
Are often used as tools for various activities in workshops and in industry. They can be used for holding workpieces whilst welding, cutting, milling or drilling etc. Because of the lack of moving parts and the robust construction of pot magnets, the life is unlimited and no maintenance is required. Just keeping the pole surface clean guarantee reliable operation and a long life
Magnetic Pot with Countersink hole include KTNP-A, KTNP-A-1,NA,KTNP-AL four types, we can offer almost all the sizes countersink hole magnetic pot. Which are best for small sized magnetic products with maximum pull strength(ideally when in directly with ferromagnetic e.g mild steel surface). The actual pull force achieved is dependent on the surface that is being clamped onto material type, flatness, friction levels, thickness.
Application:
There are many applications for Neodymium Pot Magnets, mainly in applications where a strong clamping force is required.
Applications include Point of Sale, window dressing, door / cupboard and gate clamps, false ceiling clamps, signs and banners, torque limited seals, jigs and fixtures, lighting holders, marketing and exhibition displays, retrieval magnets, industrial fixings, etc.
Are often used as tools for various activities in workshops and in industry. They can be used for holding workpieces whilst welding, cutting, milling or drilling etc. Because of the lack of moving parts and the robust construction of pot magnets, the life is unlimited and no maintenance is required. Just keeping the pole surface clean guarantee reliable operation and a long life
Item Name |
Round Base Pot Magnet with Countersunk Hole |
||||||
Material |
Neodymium Iron Boron |
||||||
Grade |
Custom made N28 to N54 (NM-EH ) |
||||||
Size |
Customers' Request |
||||||
Coating |
Nickel-plated (Ni-Cu-Ni-Au),Zn,Expoy,Sliver,others |
||||||
Magnetization |
Thickness, Axial（Other Magnetism direction Contact us） |
||||||
Sample Time |
1-5 Days |
||||||
Leading Time |
8-25 days |
||||||
Generally the NdFeB/Neodymium disc magnets are axially and diametrically magnetized.
The axially neodymium disc magnet is means one circular flat face is a North pole, the other circular flat face is a South pole with the distance between the flat faces (the disc thickness) being the distance between the poles (the magnet is magnetized along the central axis of the Neodymium disc magnet). Almost all our NdFeB/Neodymium disc magnets are supplied as axially magnetized NdFeB magnets.
• Grades: N35--N52, N35M--N50M, N35H--N48H, N35SH--N45SH, N28UH--N42UH, N28EH--N40EH
• Coating: Ni-Cu-Ni, Black Nickel, Zn, Sn, Au,Ag, Black Epoxy, Phosphated for All Neodymium Magnet
According to customized request, neodymium magnet can make to different shape/different size. Neodymium magnets or NdFeB disc magnets are round coin-shaped Neodymium magnets of varying diameter and thickness.
Disc Magnet
Block Magnet
Countersunk Magnet
Ring Magnet
Arc Magnet
Custom Magnet
Plating and Coating
Coating: Nickel-Copper-Nickel
Coating: Chrome(Cr)
Coating: Zinc
Coating: Black Epoxy
Coating: Gold
Coating: Rubber
Application
The sintered neodymium-iron-boron (NdFeB) permanent magnet is widely used in permanent magnet servo motor, permanent magnet elevator tractor, wind driven generator, permanent magnet linear motor, permanent magnet step motor, permanent magnet micromotor,permanent magnet oil field motor, permanent magnet transducer, permanent magnet loudspeaker, electronic component, medical equipment and so on.
Packing & Delivery
Company Profile
Ningbo Ketai Magnetic Material Co., Ltd
FAQ
Q: May we get a sample of the product? How to ship and how to pay ?
A: Yes,the samples testing should be necessary for first time , we would like cooperate for samples. If it's regular magnets and we have stock , we would like supply free samples for customers, if need new production , we will quote samples fee and we can accept T/T, Paypal , Western Union , Alibaba trade assurance for payment.We will send the sample to you by DHL express.
Q: What magnet materials are available?
A: There are many different magnet materials available, which we are able to provide. These include neodymium, samarium cobalt,alnico, ferrite, bonded neodymium, bonded samarium cobalt, bonded ferrite, injection molded neodymium, injection molded samarium cobalt, rubber stripping, and FeCrCu. If there is another material you wish to procure, please contact us.
Q:Can you supply custom magnets?
A: Yes, we have the capability to produce magnets to your specification in NdFeB, SmCo, AlNiCo, Ferrite, and rubberized magnet materials. You can contact us for more details .
Q:Do you have a minimum purchase order?
A: The manufacturing of magnets is a complex process, please check our production flow for more information. As considering the production time and cost, we suggest the batch order value should be more than US$3000 per time; Of course, if less than US$3000,we also would like quote our offer for your kind consideration, so we have no strict MOQ .
Q: How many days does it take to ship my order?
A: In generally, the sintering NdFeB and SmCo magnet production time is 15-25days, cast AlNiCo will take 25-30days , the magnetic assemblies will be about 30-40 days for your reference , the exact time need to be checked before the order .
Q:What elements affect the magnet price ?
A: 1. Shape and size : cylinder (DxH), cuboids(LxWxH) ,cubes, ring(ODxIDxH) belong to regular shape , arc magnets are popular used in motors or generators , before quotation and batch production , we have to confirm the technical drawing and samples, other irregular shape magnets are also can be made according to request.
2: Grade (Magnetic Property)
3: Plating(Coating)
4:Magnetizing Orientation
5:Quantity
A: Yes,the samples testing should be necessary for first time , we would like cooperate for samples. If it's regular magnets and we have stock , we would like supply free samples for customers, if need new production , we will quote samples fee and we can accept T/T, Paypal , Western Union , Alibaba trade assurance for payment.We will send the sample to you by DHL express.
Q: What magnet materials are available?
A: There are many different magnet materials available, which we are able to provide. These include neodymium, samarium cobalt,alnico, ferrite, bonded neodymium, bonded samarium cobalt, bonded ferrite, injection molded neodymium, injection molded samarium cobalt, rubber stripping, and FeCrCu. If there is another material you wish to procure, please contact us.
Q:Can you supply custom magnets?
A: Yes, we have the capability to produce magnets to your specification in NdFeB, SmCo, AlNiCo, Ferrite, and rubberized magnet materials. You can contact us for more details .
Q:Do you have a minimum purchase order?
A: The manufacturing of magnets is a complex process, please check our production flow for more information. As considering the production time and cost, we suggest the batch order value should be more than US$3000 per time; Of course, if less than US$3000,we also would like quote our offer for your kind consideration, so we have no strict MOQ .
Q: How many days does it take to ship my order?
A: In generally, the sintering NdFeB and SmCo magnet production time is 15-25days, cast AlNiCo will take 25-30days , the magnetic assemblies will be about 30-40 days for your reference , the exact time need to be checked before the order .
Q:What elements affect the magnet price ?
A: 1. Shape and size : cylinder (DxH), cuboids(LxWxH) ,cubes, ring(ODxIDxH) belong to regular shape , arc magnets are popular used in motors or generators , before quotation and batch production , we have to confirm the technical drawing and samples, other irregular shape magnets are also can be made according to request.
2: Grade (Magnetic Property)
3: Plating(Coating)
4:Magnetizing Orientation
5:Quantity
